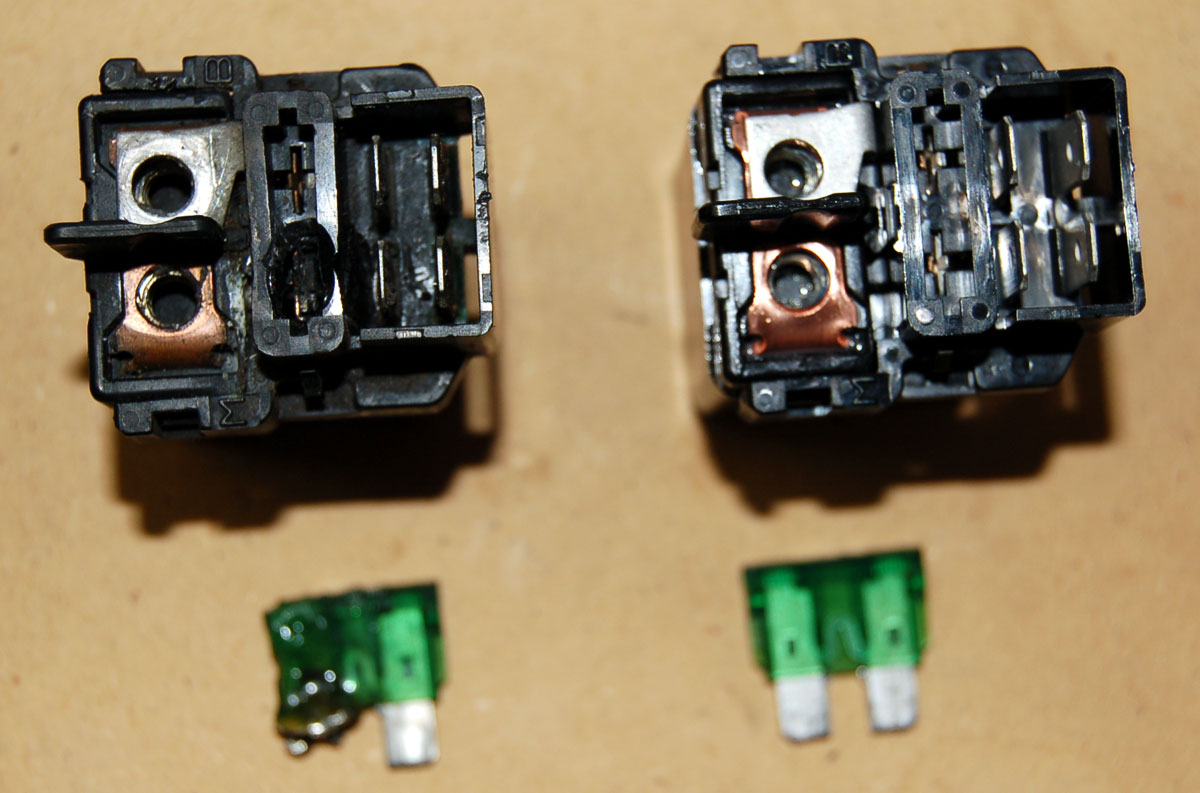

| This photo should illustrate the solution pretty clearly. | While

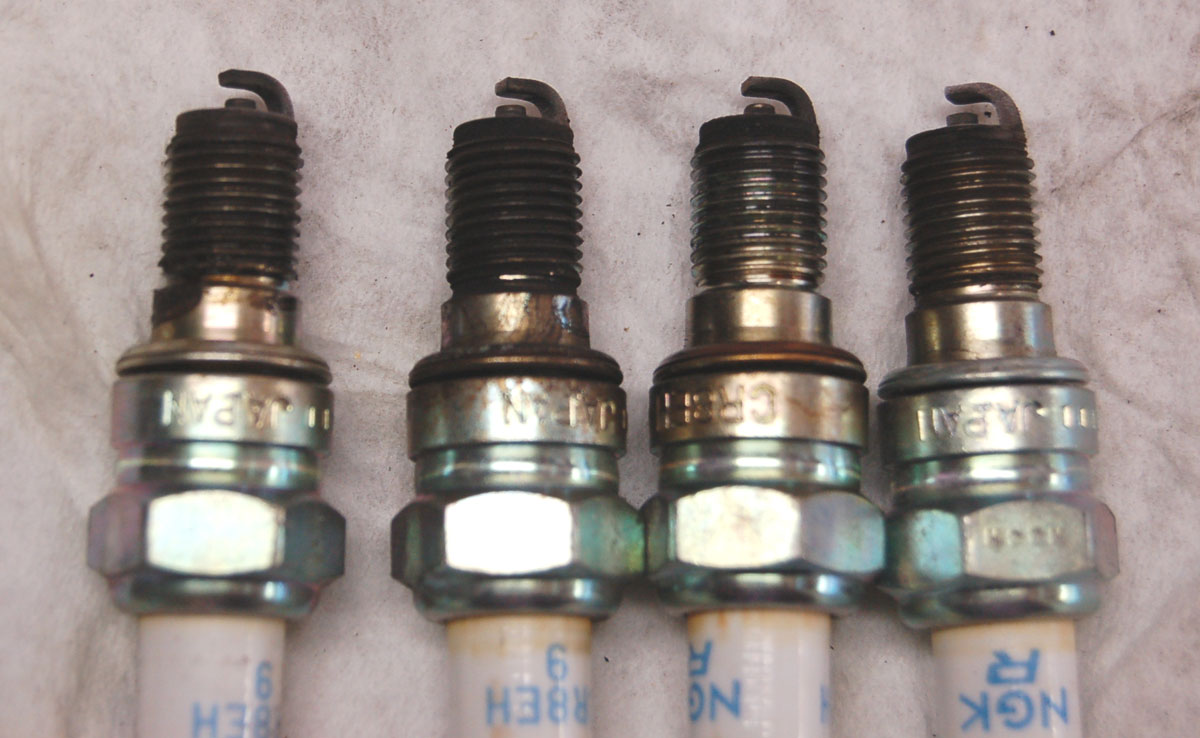

I was at it, I replaced the plugs with Iridiums. How do these old ones look? |
|
 |
 |
|
| My ST1100
was dead. Turn the key and the clock goes dark and nothing lights up. Posted my problems to the popular ST1100/1300 boards and did some digging. Here's what I found:
|
||
 That's the top of the Starter Relay Switch (page 17-5 of the service manual). |

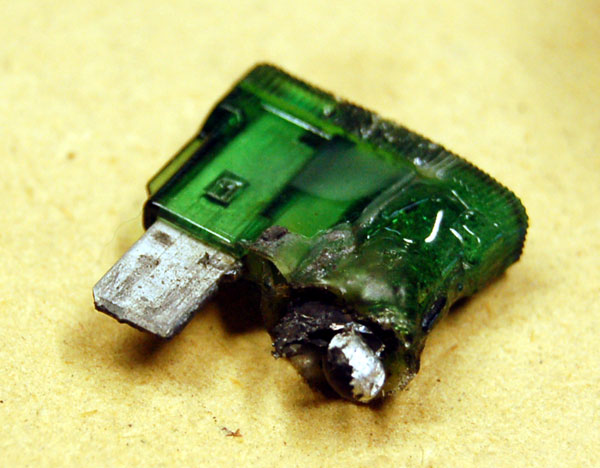

 And that's the 30A fuse I discovered. |

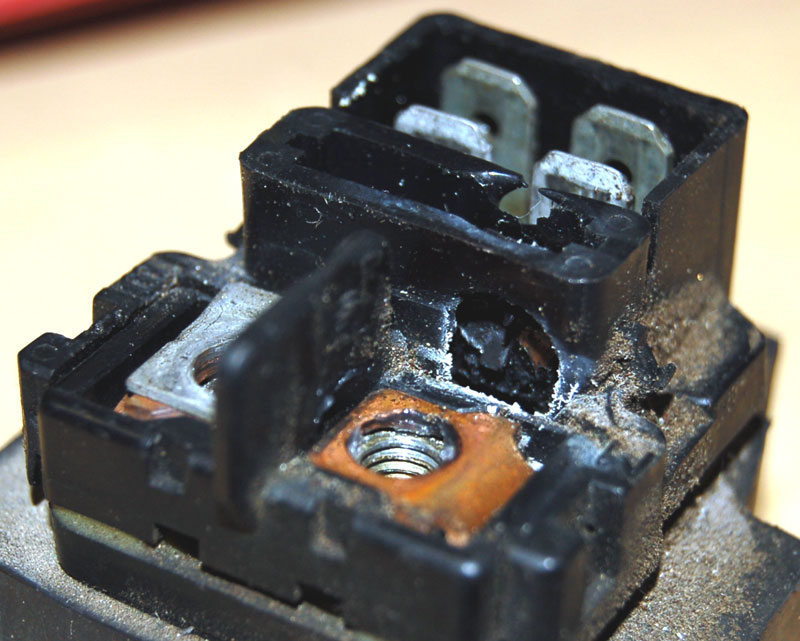

 Another view of the relay. |
| I just inspected the relay over the weekend. Obviously, I didn't look close enough. The first view above really isn't possible until you disconnect and remove the relay from the bike, as it faces inward when installed. I only found the problem when I decided to pull all fuses. | ||
